IDT74ALVC16245 - 16-bit bus transceiver

IDT74ALVC16245 Description

IDT74ALVC16245 3.3V CMOS 16-BIT BUS TRANSCIEVER WITH 3-STATE OUTPUTS 3.3V CMOS 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RAN.
This 16-bit bus transceiver is built using advanced dual metal CMOS technology.

IDT74ALVC16245 Features

* 0.5 MICRON CMOS Technology
* Typical tSK(o) (Output Skew) < 250ps
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0)
* VCC = 3.3V ± 0.3V, Normal Range
* VCC = 2.7V to 3.6V, Extended Range
* VCC = 2.5V ± 0.2V

IDT74ALVC16245 Applications

* 3.3V high speed systems

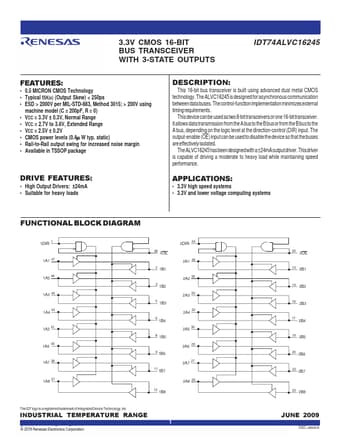

* 3.3V and lower voltage computing systems FUNCTIONAL BLOCK DIAGRAM 1DIR 1 1A1 47 1A2 46 1A3 44 1A4 43 1A5 41 1A6 40 1A7 38 1A8 37 48 1OE 2 1B1 3 1B2 5 1B3 6 1B4 8 1B5 9 1B6 11 1B7 12 1B8 2DIR 24 2A1 36 2A2 35 2A3 33 2A4 32 2A5 30 2A6 29 2A7 27 2A8 26
