ISL97683, Compact 2-3-4-Ch LED Drivers

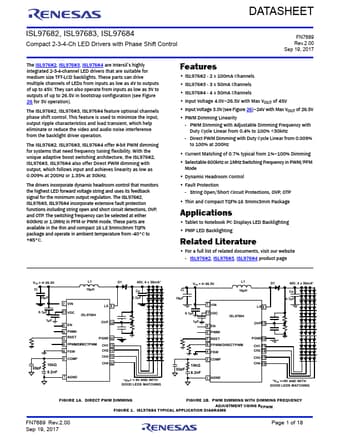

DATASHEET ISL97682, ISL97683, ISL97684 Compact 2-3-4-Ch LED Drivers with Phase Shift Control FN7689 Rev.2.00 Sep 19, 2017 The ISL97682, ISL97683, I.

ISL97683-Renesas.pdf

ISL97683 Datasheet Preview — Preview of ISL97683 PDF

Datasheet Details

Part number:

ISL97683

Manufacturer:

Renesas ↗

File Size:

568.98 KB

Description:

Compact 2-3-4-Ch LED Drivers

Features

* ISL97682 - 2 x 100mA Channels
* ISL97683 - 3 x 50mA Channels
* ISL97684 - 4 x 50mA Channels
* Input Voltage 4.0V~26.5V with Max VOUT of 45V
* Input Voltage 3.0V (see Figure 26)~24V with Max VOUT of 26.5V
* PWM Dimming Linearity - PWM Dimming with Adj

Applications

* Tablet to Notebook PC Displays LED Backlighting
* PMP LED Backlighting Related Literature
* For a full list of related documents, visit our website - ISL97682, ISL97683, ISL97684 product page VIN = 4~26.5V Ci 10µF 0.1µF 1µF 10kΩ 33pF 8.2nF L1 10µH 7 VIN 11 VDC ISL97684
