ISL99125B - 25A/35A DrMOS Module

Renesas

📥 Download Datasheet

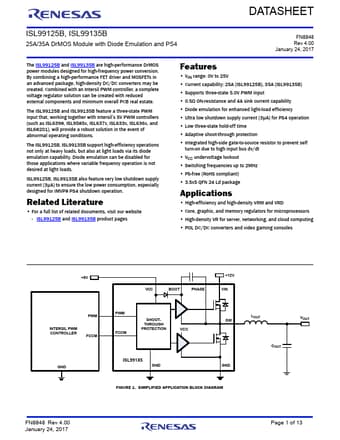

ISL99125B Datasheet Preview — Preview of ISL99125B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISL99125B
Manufacturer	Renesas ↗
File Size	768.37 KB
Description	25A/35A DrMOS Module
Datasheet	ISL99125B-Renesas.pdf

ISL99125B Product details

Description

PIN #

Features

VIN range: 0V to 25V.
Current capability: 25A (ISL99125B), 35A (ISL99135B).
Supports three-state 5.0V PWM input.
0.5Ω ON-resistance and 4A sink current capability.
Diode emulation for enhanced light-load efficiency.
Ultra low shutdown supply current (3µA) for PS4 operation.
Low three-state hold-off time.
Adaptive shoot-through protection.
Integrated high-side gate-to-source resistor to prevent self turn-on due to h.
