ISL99140 Datasheet - Renesas

ISL99140 40A DrMOS Power Module

DATASHEET ISL99140 40A DrMOS Power Module with Integrated Diode Emulation and Thermal Warning Output FN8642 Rev.2.00 Jul 20, 2017 The ISL99140 is a high performance DrMOS power module designed for high frequency power conversion. By combining a high performance FET driver and MOSFETs in an advanced package, high density DC/DC converters can be created. Combined with an Intersil PWM controller, a complete voltage regulator solution can be created with reduced external components and minimum ov.

ISL99140 Features

* a three-state PWM input that, working together with Intersil’s multiphase PWM controllers, will provide a robust solution in the event of abnormal operating conditions. To further support robust applications, the ISL99140 features a thermal warning output that can be used to notify the power system

ISL99140 Datasheet (754.17 KB)

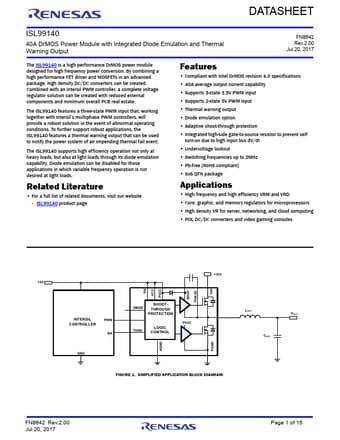

Preview of ISL99140 PDF
ISL99140 Datasheet Preview Page 2 ISL99140 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL99140

Manufacturer:

Renesas ↗

File Size:

754.17 KB

Description:

40a drmos power module.
