ISL99135B, ISL99125B Datasheet - Renesas

ISL99135B 25A/35A DrMOS Module

PIN #.
DATASHEET ISL99125B, ISL99135B 25A/35A DrMOS Module with Diode Emulation and PS4 FN8848 Rev 4.00 January 24, 2017 The ISL99125B and ISL99135B are high-performance DrMOS power modules designed for high-frequency power conversion. By combining a high-performance FET driver and MOSFETs in an advanced package, high-density DC/DC converters may be created. Combined with an Intersil PWM controller, a complete voltage regulator solution can be created with reduced external components and minimum ove.

ISL99135B Features

* VIN range: 0V to 25V

* Current capability: 25A (ISL99125B), 35A (ISL99135B)

* Supports three-state 5.0V PWM input

* 0.5Ω ON-resistance and 4A sink current capability

* Diode emulation for enhanced light-load efficiency

* Ultra low shutdown supply cur

ISL99125B-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL99135B, ISL99125B. Please refer to the document for exact specifications by model.

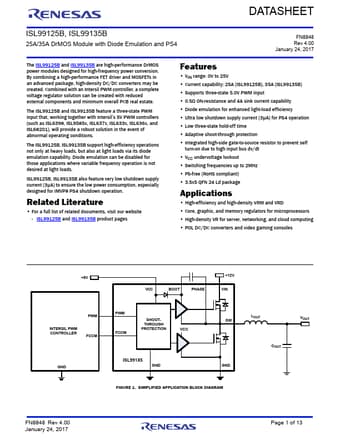

ISL99135B Datasheet Preview Page 2 ISL99135B Datasheet Preview Page 3

Datasheet Details

Part number:

ISL99135B, ISL99125B

Manufacturer:

Renesas ↗

File Size:

768.37 KB

Description:

25a/35a drmos module.

Note:

This datasheet PDF includes multiple part numbers: ISL99135B, ISL99125B.
Please refer to the document for exact specifications by model.
