ISL99227 - Smart Power Stage (SPS) Module

Renesas

📥 Download Datasheet

ISL99227 Datasheet Preview — Preview of ISL99227 PDF

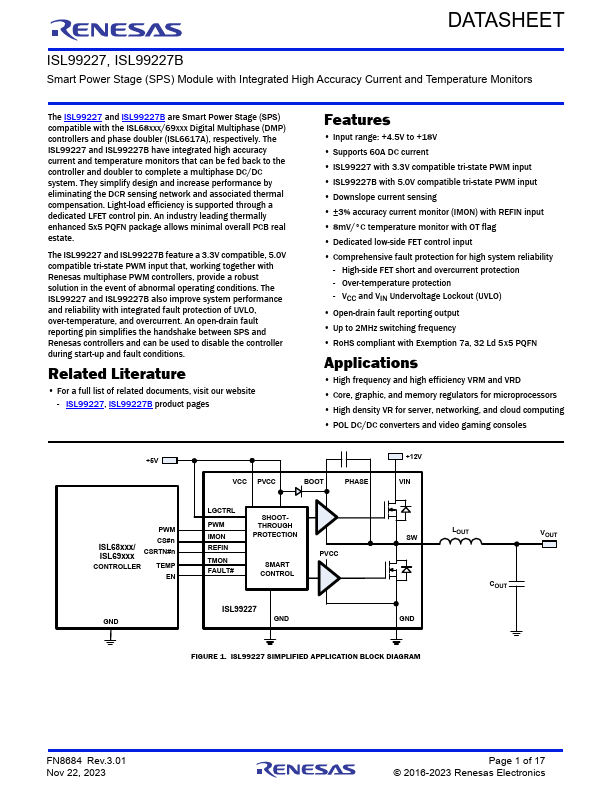

datasheet Preview Page 2

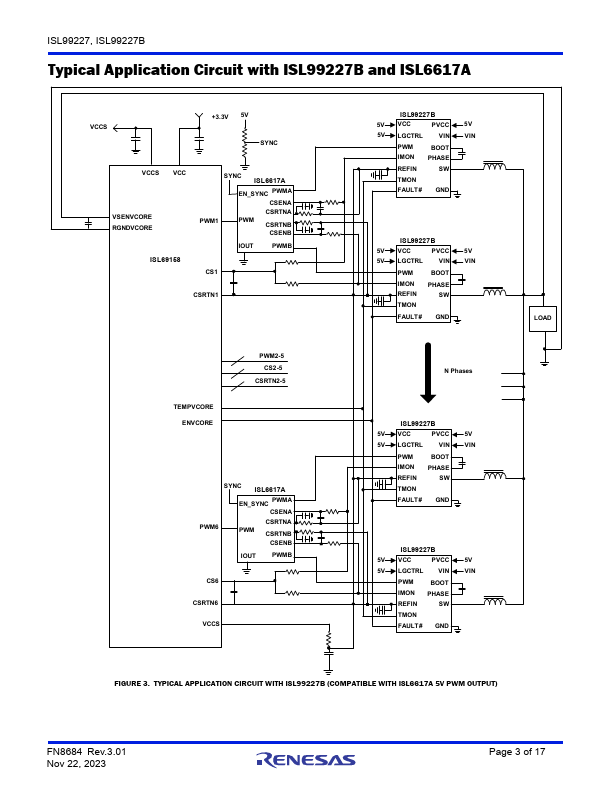

datasheet Preview Page 3

Datasheet Details

Part number	ISL99227
Manufacturer	Renesas ↗
File Size	925.65 KB
Description	Smart Power Stage (SPS) Module
Datasheet	ISL99227-Renesas.pdf

ISL99227 Product details

Features

Input range: +4.5V to +18V.
Supports 60A DC current.
ISL99227 with 3.3V compatible tri-state PWM input.
ISL99227B with 5.0V compatible tri-state PWM input.
Downslope current sensing.
±3% accuracy current monitor (IMON) with REFIN input.
8mV/°C temperature monitor with OT flag.
Dedicated low-side FET control input.
Comprehensive fault protection for high system reliability - High-side FET short and overcurrent prote.
