ISL99227B, ISL99227 Datasheet - Renesas

ISL99227B Smart Power Stage (SPS) Module

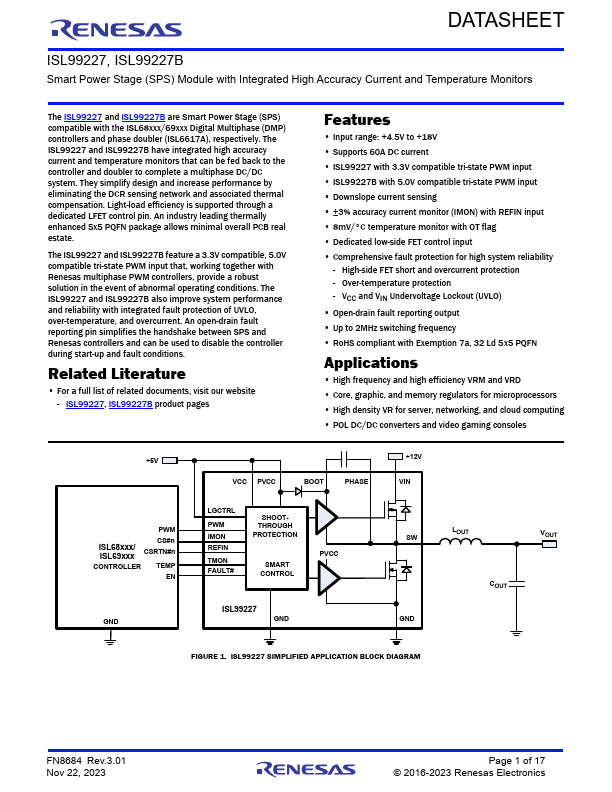

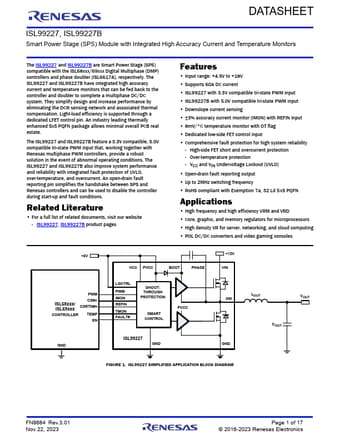

DATASHEET ISL99227, ISL99227B Smart Power Stage (SPS) Module with Integrated High Accuracy Current and Temperature Monitors The ISL99227 and ISL99227B are Smart Power Stage (SPS) compatible with the ISL68xxx/69xxx Digital Multiphase (DMP) controllers and phase doubler (ISL6617A), respectively. The ISL99227 and ISL99227B have integrated high accuracy current and temperature monitors that can be fed back to the controller and doubler to complete a multiphase DC/DC system. They simplify design and.

ISL99227B Features

* Input range: +4.5V to +18V

* Supports 60A DC current

* ISL99227 with 3.3V compatible tri-state PWM input

* ISL99227B with 5.0V compatible tri-state PWM input

* Downslope current sensing

* ±3% accuracy current monitor (IMON) with REFIN input

ISL99227-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL99227B, ISL99227. Please refer to the document for exact specifications by model.

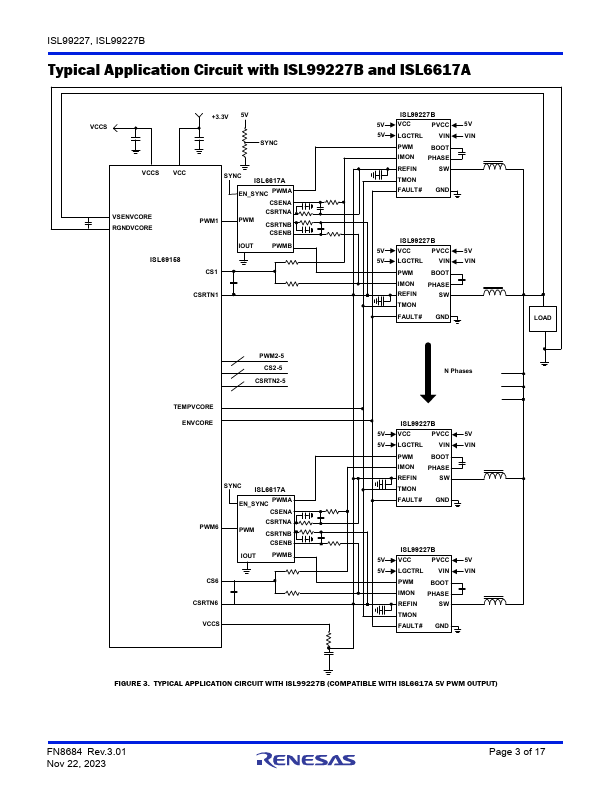

ISL99227B Datasheet Preview Page 2 ISL99227B Datasheet Preview Page 3

Datasheet Details

Part number:

ISL99227B, ISL99227

Manufacturer:

Renesas ↗

File Size:

925.65 KB

Description:

Smart power stage (sps) module.

Note:

This datasheet PDF includes multiple part numbers: ISL99227B, ISL99227.
Please refer to the document for exact specifications by model.
