NP161N04TUG Datasheet, Fet, Renesas

NP161N04TUG Features

  • Fet
  • Super low on-state resistance RDS(on) = 1.35 mΩ TYP. / 1.8 mΩ MAX. (VGS = 10 V, ID = 80 A)
  • High Current Rating ID(DC) = ±160 A ABSOLUTE MAXIMUM RATINGS (TA = 25°C)

PDF File Details

Part number:

NP161N04TUG

Manufacturer:

Renesas ↗

File Size:

327.05kb

Download:

📄 Datasheet

Description:

N-channel power mos fet. The NP161N04TUG is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PAR

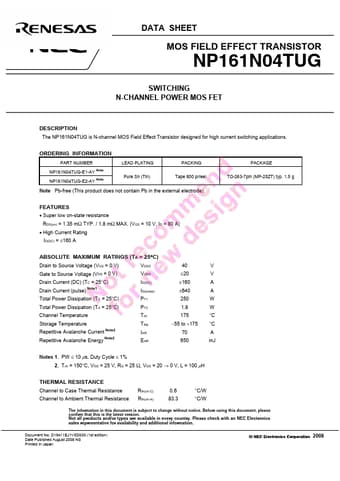

Datasheet Preview: NP161N04TUG 📥 Download PDF (327.05kb)
Page 2 of NP161N04TUG Page 3 of NP161N04TUG

NP161N04TUG Application

  • Applications ORDERING INFORMATION PART NUMBER NP161N04TUG-E1-AY Note NP161N04TUG-E2-AY Note LEAD PLATING Pure Sn (Tin) PACKING Tape 800 p/reel
