NP160N04TDG SWITCHING N-CHANNEL POWER MOS FET

NEC

Description

www.DataSheet4U.com DATA SHEET MOS FIELD EFFECT TRANSISTOR NP160N04TDG SWITCHING N-CHANNEL POWER MOS FET .
The NP160N04TDG is N-channel MOS Field Effect Transistor designed for high current switching applications.

📥 Download Datasheet

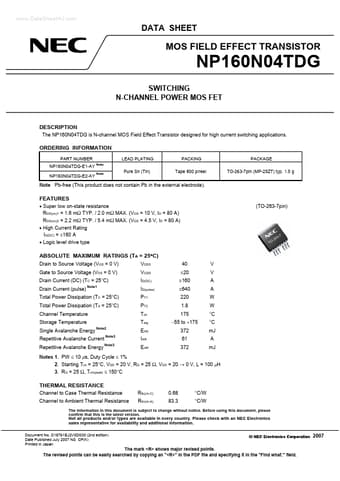

NP160N04TDG Datasheet Preview — Preview of NP160N04TDG PDF

Datasheet Specifications

Part number: NP160N04TDG
Manufacturer: NEC
File Size: 311.82 KB
Datasheet: NP160N04TDG_NEC.pdf
Description: SWITCHING N-CHANNEL POWER MOS FET

Features

* Super low on-state resistance RDS(on)1 = 1.6 mΩ TYP. / 2.0 mΩ MAX. (VGS = 10 V, ID = 80 A) RDS(on)2 = 2.2 mΩ TYP. / 5.4 mΩ MAX. (VGS = 4.5 V, ID = 80 A)
* High Current Rating ID(DC) = ±160 A
* Logic level drive type (TO-263-7pin) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain
