NP100P04PLG Datasheet - NEC

MOS FIELD EFFECT TRANSISTOR

NP100P04PLG Features

* Super low on-state resistance RDS(on)1 = 3.7 mΩ MAX. (VGS =

* 10 V, ID =

* 50 A) RDS(on)2 = 5.1 mΩ MAX. (VGS =

* 4.5 V, ID =

* 50 A)

* High current rating: ID(DC) = m100 A

* Built-in gate protection diode (TO-263) ABSOLUTE MAXIMUM RATINGS (TA =

NP100P04PLG General Description

The NP100P04PLG is P-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART NUMBER NP100P04PLG-E1-AY NP100P04PLG-E2-AY Note Note LEAD PLATING Pure Sn (Tin) PACKING Tape 800 p/reel PACKAGE TO-263 (MP-25ZP) Note Pb-free (This product do.

NP100P04PLG Datasheet (210.90 KB)

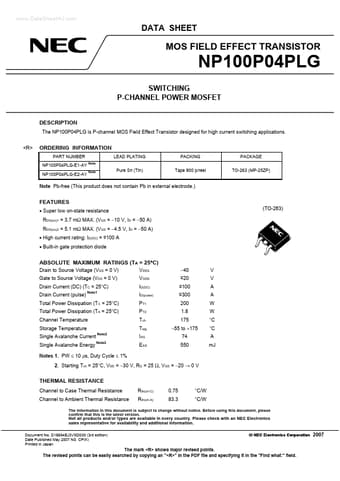

NP100P04PLG Datasheet Preview — Preview of NP100P04PLG PDF

Datasheet Details

Part number:

NP100P04PLG

Manufacturer:

NEC

File Size:

210.90 KB

Description:

Mos field effect transistor.
