NP109N04PUK Datasheet, Transistor, Renesas

NP109N04PUK Features

  • Transistor
  • Super low on-state resistance RDS(on) = 1.75 mΩ MAX. (VGS = 10 V, ID = 55 A)
  • Low Ciss: Ciss = 7200 pF TYP. (VDS = 25 V)
  • Designed for automotive application

PDF File Details

Part number:

NP109N04PUK

Manufacturer:

Renesas ↗

File Size:

220.35kb

Download:

📄 Datasheet

Description:

Mos field effect transistor. The NP109N04PUK is N-channel MOS Field Effect Transistor designed for high current switching applications. Features

  • Super l

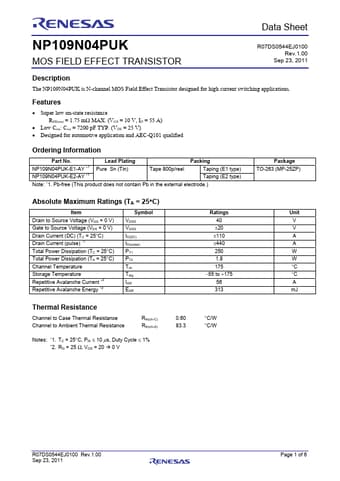

  • Datasheet Preview: NP109N04PUK 📥 Download PDF (220.35kb)
    Page 2 of NP109N04PUK Page 3 of NP109N04PUK

    NP109N04PUK Application

    • Applications Features
    • Super low on-state resistance RDS(on) = 1.75 mΩ MAX. (VGS = 10 V, ID = 55 A)
    • Low Ciss: Ciss = 7200 pF TYP
