NP109N055PUK Datasheet, Transistor, Renesas

NP109N055PUK Features

  • Transistor
  • Super low on-state resistance RDS(on) = 2.2 mī— MAX. (VGS = 10 V, ID = 55 A)
  • Low Ciss: Ciss = 7500 pF TYP. (VDS = 25 V)
  • Designed for automotive application

PDF File Details

Part number:

NP109N055PUK

Manufacturer:

Renesas ↗

File Size:

103.56kb

Download:

📄 Datasheet

Description:

Mos field effect transistor. The NP109N055PUK is N-channel MOS Field Effect Transistor designed for high current switching applications. Features Super

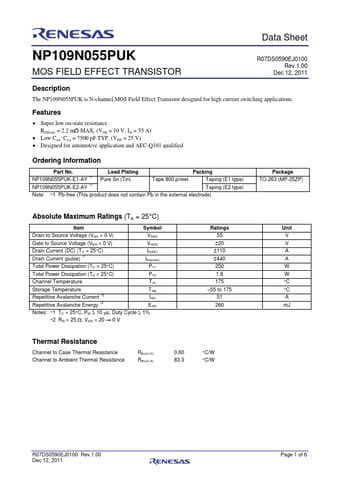

Datasheet Preview: NP109N055PUK 📥 Download PDF (103.56kb)
Page 2 of NP109N055PUK Page 3 of NP109N055PUK

NP109N055PUK Application

  • Applications Features
  • Super low on-state resistance RDS(on) = 2.2 mī— MAX. (VGS = 10 V, ID = 55 A)
  • Low Ciss: Ciss = 7500 pF TYP.
