NP100P06PDG Datasheet - NEC

NP100P06PDG - MOS FIELD EFFECT TRANSISTOR

The NP100P06PDG is P-channel MOS Field Effect Transistor designed for high current switching applications.

ORDERING INFORMATION PART NUMBER NP100P06PDG-E1-AY NP100P06PDG-E2-AY Note Note LEAD PLATING Pure Sn (Tin) PACKING Tape 800 p/reel PACKAGE TO-263 (MP-25ZP) Note Pb-free (This product do

NP100P06PDG Features

* Super low on-state resistance RDS(on)1 = 6.0 mΩ MAX. (VGS =

* 10 V, ID =

* 50 A) RDS(on)2 = 7.8 mΩ MAX. (VGS =

* 4.5 V, ID =

* 50 A)

* High current rating: ID(DC) = m100 A (TO-263) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage (VGS = 0 V

NP100P06PDG_NEC.pdf

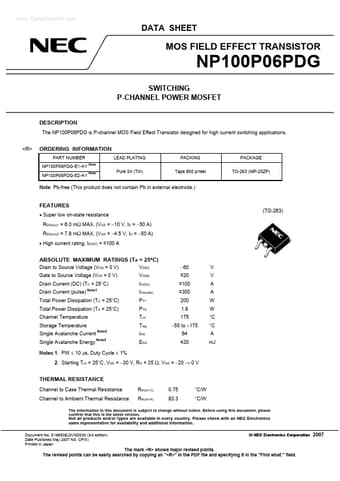

Preview of NP100P06PDG PDF
