NP100P04PDG Datasheet - NEC

MOS FIELD EFFECT TRANSISTOR

NP100P04PDG Features

* Super low on-state resistance RDS(on)1 = 3.5 mΩ MAX. (VGS =

* 10 V, ID =

* 50 A) RDS(on)2 = 5.1 mΩ MAX. (VGS =

* 4.5 V, ID =

* 50 A)

* High current rating: ID(DC) = m100 A (TO-263) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain to Source Voltage (VGS = 0 V

NP100P04PDG General Description

The NP100P04PDG is P-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART NUMBER NP100P04PDG-E1-AY NP100P04PDG-E2-AY Note Note LEAD PLATING Pure Sn (Tin) PACKING Tape 800 p/reel PACKAGE TO-263 (MP-25ZP) Note Pb-free (This product do.

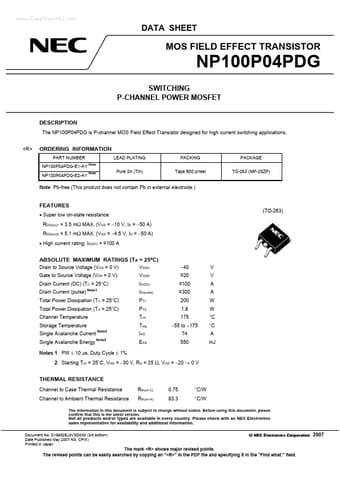

NP100P04PDG Datasheet (210.74 KB)

NP100P04PDG Datasheet Preview — Preview of NP100P04PDG PDF

Datasheet Details

Part number:

NP100P04PDG

Manufacturer:

NEC

File Size:

210.74 KB

Description:

Mos field effect transistor.
