NP60N04KUG Datasheet, Mosfet, Renesas

NP60N04KUG Features

  • Mosfet
  • Channel temperature 175 degree rating
  • Super low on-state resistance RDS(on) = 6.1 mΩ MAX. (VGS = 10 V, ID = 30 A)
  • Low Ciss: Ciss = 3400 pF TYP. (TO-263)

PDF File Details

Part number:

NP60N04KUG

Manufacturer:

Renesas ↗

File Size:

190.83kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The NP60N04KUG is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART

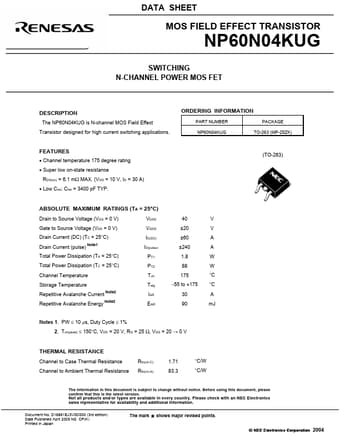

Datasheet Preview: NP60N04KUG 📥 Download PDF (190.83kb)
Page 2 of NP60N04KUG Page 3 of NP60N04KUG

NP60N04KUG Application

  • Applications ORDERING INFORMATION PART NUMBER PACKAGE NP60N04KUG TO-263 (MP-25ZK) FEATURES
  • Channel temperature 175 degree rating
