NP60N04PDK - N-Channel Power MOSFET

Renesas

📥 Download Datasheet

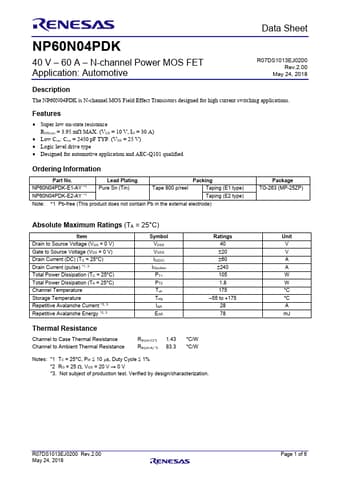

NP60N04PDK Datasheet Preview — Preview of NP60N04PDK PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NP60N04PDK
Manufacturer	Renesas ↗
File Size	266.93 KB
Description	N-Channel Power MOSFET
Datasheet	NP60N04PDK-Renesas.pdf

NP60N04PDK Product details

Description

The NP60N04PDK is N-channel MOS Field Effect Transistors designed for high current switching applications.

Features

Super low on-state resistance RDS(on) = 3.95 m MAX. (VGS = 10 V, ID = 30 A).
Low Ciss: Ciss = 2450 pF TYP. (VDS = 25 V).
Logic level drive type.
Designed for automotive.
