NP60N04MUK - N-Channel MOSFET

Renesas

📥 Download Datasheet

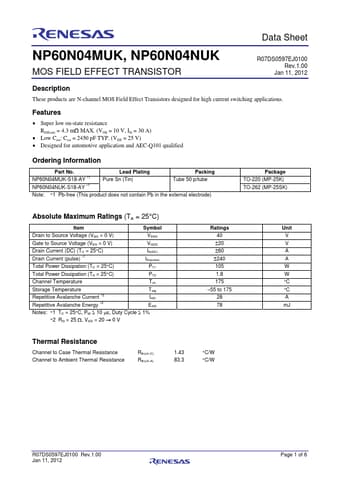

NP60N04MUK Datasheet Preview — Preview of NP60N04MUK PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NP60N04MUK
Manufacturer	Renesas ↗
File Size	105.80 KB
Description	N-Channel MOSFET
Datasheet	NP60N04MUK-Renesas.pdf

NP60N04MUK Product details

Description

These products are N-channel MOS Field Effect Transistors designed for high current switching applications.

Features

Super low on-state resistance RDS(on) = 4.3 m MAX. (VGS = 10 V, ID = 30 A).
Low Ciss: Ciss = 2450 pF TYP. (VDS = 25 V).
Designed for automotive.
