RU1H100R - N-Channel Advanced Power MOSFET

Ruichips

The RU1H100R by Ruichips is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

RU1H100R N-Channel Advanced Power MOSFET by Ruichips - Datasheet Preview — Official preview page of the **RU1H100R** N-Channel Advanced Power MOSFET datasheet (Ruichips).

Datasheet Details

Part number	RU1H100R
Manufacturer	Ruichips
File Size	284.89 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU1H100R-Ruichips.pdf
Additional preview pages of the RU1H100R datasheet.

RU1H100R Product details

Description

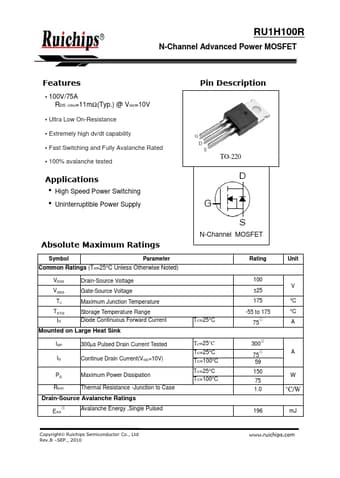

TO-220 Absolute Maximum Ratings N-Channel MOSFET Symbol Parameter Common Ratings (TA=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG IS Storage Temperature Range Diode Continuous Forward Current Mounted on Large Heat Sink IDP 300µs Pulsed Drain Current Tested ID Continue Drain Current(VGS=10V) PD Maximum Power Dissipation RθJC Thermal Resistance -Junction to Case Drain-Source Avalanche Ratings StoragEeAST③empera

Features

100V/75A RDS (ON)=11mΩ(Typ. ) @ VGS=10V.
Ultra Low On-Resistance.
Extremely high dv/dt capability.
Fast Switching and Fully Avalanche Rated.
100% avalanche tested.
