RU1H130R - N-Channel Advanced Power MOSFET

Ruichips

The RU1H130R by Ruichips is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

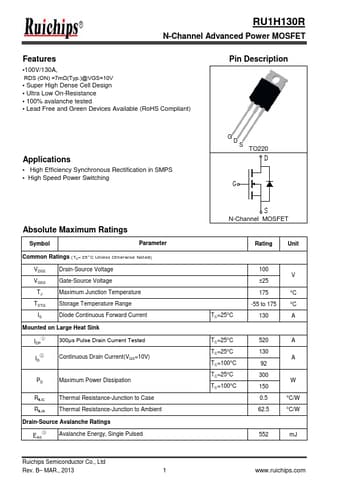

RU1H130R N-Channel Advanced Power MOSFET by Ruichips - Datasheet Preview — Official preview page of the **RU1H130R** N-Channel Advanced Power MOSFET datasheet (Ruichips).

Datasheet Details

Part number	RU1H130R
Manufacturer	Ruichips
File Size	306.18 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU1H130R-Ruichips.pdf
Additional preview pages of the RU1H130R datasheet.

RU1H130R Product details

Description

Applications High Efficiency Synchronous Rectification in SMPS High Speed Power Switching Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink ① IDP 300μs Pulse Drain Current Tested ② ID Continuous Drain Current(VGS=10V) PD Maximum Power Dissipati

Features

100V/130A, RDS (ON) =7mΩ(Typ. )@VGS=10V.
Super High Dense Cell Design.
Ultra Low On-Resistance.
100% avalanche tested.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
