RU1H130S - N-Channel Advanced Power MOSFET

Ruichips

The RU1H130S by Ruichips is a N-Channel Advanced Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

RU1H130S N-Channel Advanced Power MOSFET by Ruichips - Datasheet Preview — Official preview page of the **RU1H130S** N-Channel Advanced Power MOSFET datasheet (Ruichips).

Datasheet Details

Part number	RU1H130S
Manufacturer	Ruichips
File Size	308.19 KB
Description	N-Channel Advanced Power MOSFET
Datasheet	RU1H130S-Ruichips.pdf

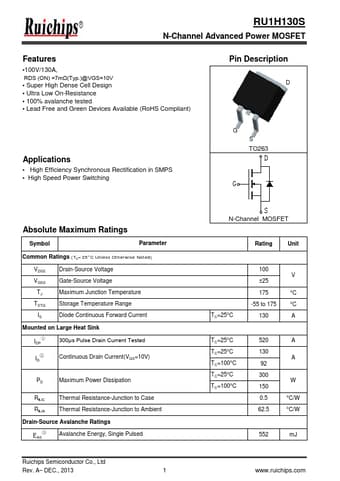

Additional preview pages of the RU1H130S datasheet.

RU1H130S Product details

Description

D Applications High Efficiency Synchronous Rectification in SMPS High Speed Power Switching G S TO263 D G Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS Drain-Source Voltage VGSS Gate-Source Voltage TJ Maximum Junction Temperature TSTG Storage Temperature Range IS Diode Continuous Forward Current Mounted on Large Heat Sink ① IDP 300μs Pulse Drain Current Tested ② ID Continuous Drain Current(VGS=10V) PD Maximu

Features

100V/130A, RDS (ON) =7mΩ(Typ. )@VGS=10V.
Super High Dense Cell Design.
Ultra Low On-Resistance.
100% avalanche tested.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
