RU1H150R, N-Channel Advanced Power MOSFET

RU1H150R N-Channel Advanced Power MOSFET .

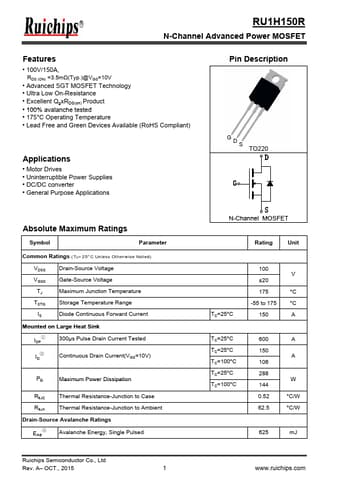

datasheet Preview Page 1 from Datasheet4u.com

RU1H150R-Ruichips.pdf

RU1H150R Datasheet Preview — Preview of RU1H150R PDF

Datasheet Details

Part number:

RU1H150R

Manufacturer:

Ruichips

File Size:

460.41 KB

Description:

N-Channel Advanced Power MOSFET

Features

* 100V/150A, RDS (ON) =3.5mΩ(Typ. )@VGS=10V
* Advanced SGT MOSFET Technology
* Ultra Low On-Resistance
* Excellent QgxRDS(on) Product
* 100% avalanche tested
* 175°C Operating Temperature
* Lead Free and Green Devices Available (RoHS Compliant)

Applications

* Motor Drives
* Uninterruptible Power Supplies
* DC/DC converter
* General Purpose Applications Absolute Maximum Ratings Symbol Parameter Common Ratings (TC=25°C Unless Otherwise Noted) VDSS VGSS TJ TSTG IS Drain-Source Voltage Gate-Source Voltage Maximum Junct
