SGM2035S - RF Linear Regulator

Product Overview

SG Micro

Part number	SGM2035S
Manufacturer	SG Micro
File Size	1.03 MB
Description	RF Linear Regulator
Datasheet	SGM2035S Datasheet

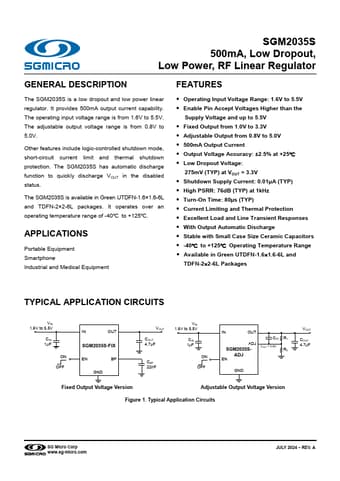

Additional preview pages of the SGM2035S datasheet.

The SGM2035S is a low dropout and low power linear regulator.

include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2035S has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2035S is available in Green UTDFN-1.6×1.6-6L and TDFN-2×2-6L packages. It operates over an operating temperature range of -40℃ to +125℃.
