SGM2030

RF-Linear Regulators

SGM2030 Features

* Low Dropout Voltage

* Thermal-Overload Protection

* Output Current Limit

* High PSRR (71dB at 1kHz)

* 10nA Logic-Controlled Shutdown

* Available in Multiple Output Voltage Versions

* Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.6V, 2.8V, 2.85V,

SGM2030 General Description

The SGM2030 series low-power, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 5.5V input voltage in an ultra small package. They are the perfect choice for low voltage, low power applications. A low ground current makes this part attractive for battery operated power systems. The .

SGM2030 Datasheet (287.75 KB)

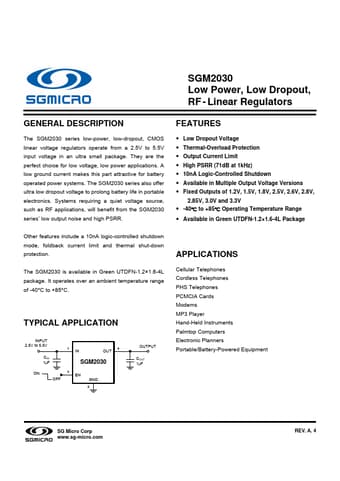

Preview of SGM2030 PDF

Datasheet Details

Part number:

SGM2030

Manufacturer:

Shengbang Microelectronics

File Size:

287.75 KB

Description:

Rf-linear regulators.
