SGM2037

Very Low Dropout Bias Rail CMOS Voltage Regulator

SGM2037 Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2037 has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2037 is suitable for applications which need low noise, fast transient response and low IQ consum

SGM2037 General Description

The SGM2037 is a low noise, low dropout voltage linear regulator which is designed using CMOS technology. It provides 500mA output current capability. The operating input voltage range is from 0.8V to 5.5V and bias supply voltage range is from 2.5V to 5.5V. The output voltage range is from 0.8V to 3.

SGM2037 Datasheet (901.92 KB)

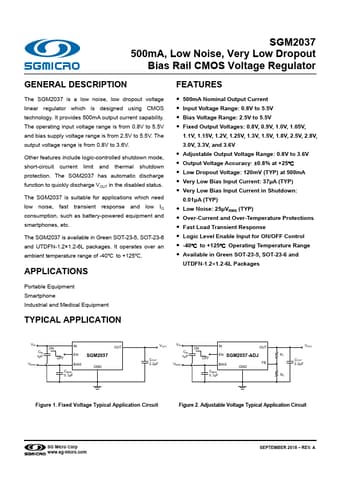

Preview of SGM2037 PDF

Datasheet Details

Part number:

SGM2037

Manufacturer:

SG Micro

File Size:

901.92 KB

Description:

Very low dropout bias rail cmos voltage regulator.
