SGM2032

RF Linear Regulator

SGM2032 Features

* include logic-controlled shutdown mode, output current limit and thermal shutdown protection. The SGM2032 is available in Green SOT-23-5 and SC70-5 packages. It operates over an operating temperature range of -40℃ to +85℃. FEATURES

* Operating Input Voltage Range: 2.5V to 5.5V

* Fixed Outpu

SGM2032 General Description

The SGM2032 is a low power and low dropout voltage RF linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of only 270mV. The operating input voltage range is from 2.5V to 5.5V. The fixed output voltage range is from 0.9V to 5.0V and the adjustable output vo.

SGM2032 Datasheet (815.56 KB)

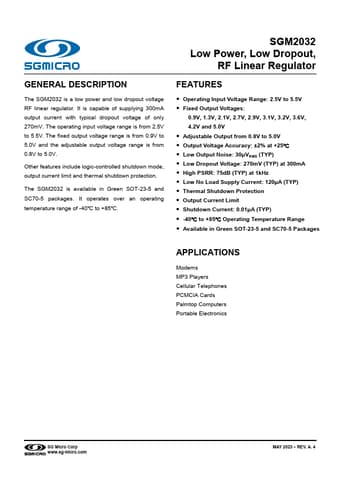

Preview of SGM2032 PDF

Datasheet Details

Part number:

SGM2032

Manufacturer:

Shengbang Microelectronics

File Size:

815.56 KB

Description:

Rf linear regulator.
