SGM2037S Datasheet - SG Micro

CMOS LDO

SGM2037S Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2037S has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2037S is suitable for applications which need low noise, fast transient response and low IQ cons

SGM2037S General Description

The SGM2037S is a low noise, low dropout voltage linear regulator which is designed using CMOS technology. It provides 600mA output current capability. The operating input voltage range is from 0.9V to 5.5V and bias supply voltage range is from 2.5V to 5.5V. The fixed output voltage is 0.9V. Other f.

SGM2037S Datasheet (437.24 KB)

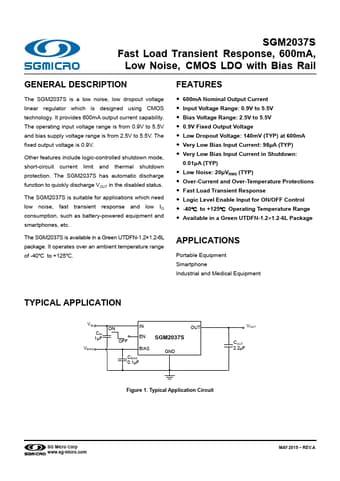

SGM2037S Datasheet Preview — Preview of SGM2037S PDF

Datasheet Details

Part number:

SGM2037S

Manufacturer:

SG Micro

File Size:

437.24 KB

Description:

Cmos ldo .
