SGM2036S Datasheet - SG Micro

SGM2036S Low Power and Low Dropout RF Linear Regulator

The SGM2036S is a low input voltage, low noise and low dropout voltage linear regulator. It is capable of supplying 300mA output current with typical dropout voltage of only 190mV. The operating input voltage range is from 1.6V to 5.5V. The output voltage range is from 0.75V to 5.0V in fixed output .

SGM2036S Features

* include logic-controlled shutdown mode, short-circuit current limit and thermal shutdown protection. The SGM2036S has automatic discharge function to quickly discharge VOUT in the disabled status. The SGM2036S is available in Green XTDFN-1×1-4L, SOT-23-5 and SC70-5 packages. It operates over an oper

SGM2036S Datasheet (1.24 MB)

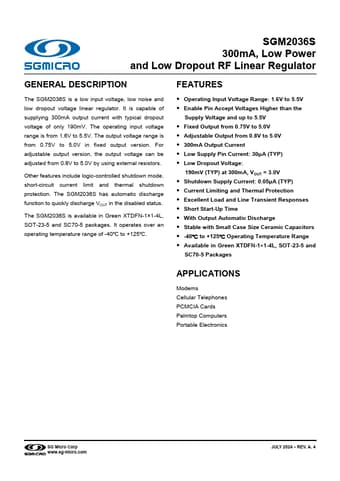

Preview of SGM2036S PDF
SGM2036S Datasheet Preview Page 2 SGM2036S Datasheet Preview Page 3

Datasheet Details

Part number:

SGM2036S

Manufacturer:

SG Micro

File Size:

1.24 MB

Description:

Low power and low dropout rf linear regulator.
