SGM4563, 4-Bit Level Translator

SGM4563 4-Bit Level Translator for SPI Bus or UART Interface GENERAL .
The SGM4563 is a 4-bit, non-inverting, bidirectional voltage-level translator which features two independent configurable power-supply lines.

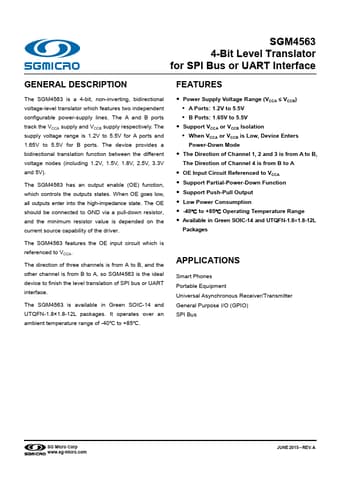

datasheet Preview Page 1 from Datasheet4u.com

SGM4563-SGMicro.pdf

SGM4563 Datasheet Preview — Preview of SGM4563 PDF

Datasheet Details

Part number:

SGM4563

Manufacturer:

SG Micro

File Size:

643.94 KB

Description:

4-Bit Level Translator

Features

* two independent configurable power-supply lines. The A and B ports track the VCCA supply and VCCB supply respectively. The supply voltage range is 1.2V to 5.5V for A ports and 1.65V to 5.5V for B ports. The device provides a bidirectional translation function between the different voltage nodes (inc

Applications

* Smart Phones Portable Equipment Universal Asynchronous Receiver/Transmitter General Purpose I/O (GPIO) SPI Bus SG Micro Corp www. sg-micro. com JUNE 2015
