SGM4564 - 4-Bit Bidirectional Voltage-Level Translator

Datasheet Summary

Description

The SGM4564 is a 4-bit, non-inverting, bidirectional voltage-level translator which

Features

  • two independent configurable power-supply lines. The A and B ports track the VCCA supply and VCCB supply respectively. The supply voltage range is 1.2V to 5.5V for A ports and 1.65V to 5.5V for B ports. The device provides a bidirectional translation function between the different voltage nodes (including 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5V). The SGM4564 has an output enable (OE) function, which controls the outputs states. When OE goes low, all outputs enter into the high-impedance state. The O.

📥 Download Datasheet

Datasheet preview – SGM4564

Datasheet Details

Part number SGM4564
Manufacturer SG Micro
File Size 665.12 KB
Description 4-Bit Bidirectional Voltage-Level Translator
Datasheet download datasheet SGM4564 Datasheet
Additional preview pages of the SGM4564 datasheet.

📁 Similar Datasheet

  • SGM45C1E682-4A - compact physical dimensions (Sumitiomo)
  • SGM45C1H102-4A - compact physical dimensions (Sumitiomo)
  • SGM45C1H222-4A - compact physical dimensions (Sumitiomo)
  • SGM45C1H471-4A - compact physical dimensions (Sumitiomo)
  • SGM4157 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44599 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44600 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44601 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44602 - DPDT Analog Switch (Shengbang Microelectronics)
  • SGM44603 - SPDT Analog Switch (Shengbang Microelectronics)
Other Datasheets by SG Micro
  • SGM4563 - 4-Bit Level Translator
  • SGM4568 - 8-Bit Bidirectional Voltage-Level Translator
  • SGM450 - High Accuracy Analog Output Temperature Sensor
  • SGM451 - Local and Remote Temperature Sensor
  • SGM4510 - Quad SPST CMOS Analog Switch
  • SGM4517 - SPDT Analog Switch
  • SGM4518 - CMOS Analog Multiplexer
  • SGM4518SH - CMOS Analog Multiplexer

Full PDF Text Transcription

Click to expand full text

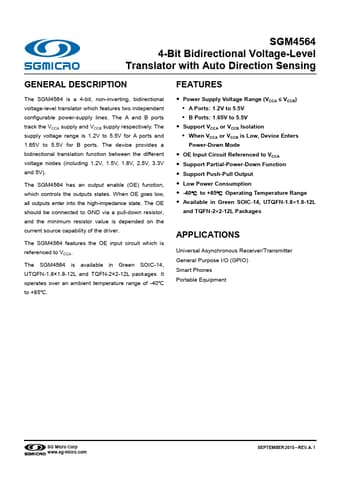

SGM4564 4-Bit Bidirectional Voltage-Level Translator with Auto Direction Sensing GENERAL DESCRIPTION The SGM4564 is a 4-bit, non-inverting, bidirectional voltage-level translator which features two independent configurable power-supply lines. The A and B ports track the VCCA supply and VCCB supply respectively. The supply voltage range is 1.2V to 5.5V for A ports and 1.65V to 5.5V for B ports. The device provides a bidirectional translation function between the different voltage nodes (including 1.2V, 1.5V, 1.8V, 2.5V, 3.3V and 5V). The SGM4564 has an output enable (OE) function, which controls the outputs states. When OE goes low, all outputs enter into the high-impedance state.
