ST2317DFX HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

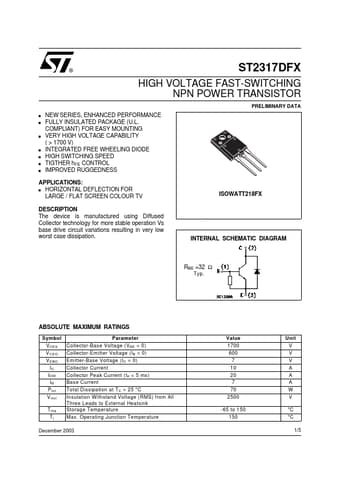

The device is manufactured using Diffused Collector technology for more stable operation Vs base drive circuit variations resulting in very low worst case dissipation. ISOWATT218FX INTERNAL SCHEMATIC DIAGRAM RBE =32 Ω Typ. ABSOLUTE MAXIMUM RATINGS Symbol V CES V CEO V EBO IC I CM IB P tot V isol.

ST2317DFX_STMicroelectronics.pdf

Preview of ST2317DFX PDF
ST2317DFX Datasheet Preview Page 2 ST2317DFX Datasheet Preview Page 3

Datasheet Details

Part number:

ST2317DFX

Manufacturer:

STMicroelectronics ↗

File Size:

64.06 KB

Description:

High voltage fast-switching npn power transistor.
