STB130NH02L

N-channel Power MOSFET

STB130NH02L Features

* TYPE STB130NH02L STP130NH02L

* STB130NH02L STP130NH02L Figure 1:Package RDS(on) < 0.0044 Ω < 0.0044 Ω ID 90 A(2) 90 A(2) VDSS 24 V 24 V TYPICAL RDS(on) = 0.0034 Ω @ 10 V TYPICAL RDS(on) = 0.005 Ω @ 5 V RDS(ON)

* Qg INDUSTRY’s BENCHMARK CONDUCTION LOSSE

STB130NH02L General Description

The STB_P130NH02L utilizes the latest advanced design rules of ST’s proprietary STripFET™ technology. It is ideal in high performance DC-DC converter applications where efficiency is to be achieved at very high output currents. Figure 2: Internal Schematic Diagram APPLICATIONS
* SYNCHRONOUS RE.

STB130NH02L Datasheet (346.94 KB)

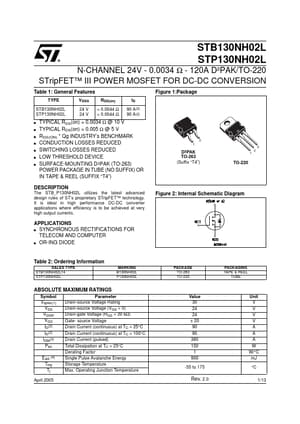

Preview of STB130NH02L PDF

Datasheet Details

Part number:

STB130NH02L

Manufacturer:

STMicroelectronics ↗

File Size:

346.94 KB

Description:

N-channel power mosfet.
