STB130NS04ZB-1

N-channel Power MOSFET

STB130NS04ZB-1 Features

* 7$% Type VDS RDS(on) max. ID STB130NS04ZB-1 Clamped 9 mΩ 80 A ,3$.  Figure 1. Internal schematic diagram

* Designed for automotive applications and AEC-Q101 qualified

* 100% avalanche tested

* Low capacitance and gate charge

* 175°C maximum junction temp

STB130NS04ZB-1 General Description

This fully clamped MOSFET is produced using ST’s latest advanced Mesh overlay process, which is based on an innovative strip layout. The inherent benefits of the new technology coupled with the extra clamping capabilities make this product particularly suitable for the harshest operation conditions,.

STB130NS04ZB-1 Datasheet (515.27 KB)

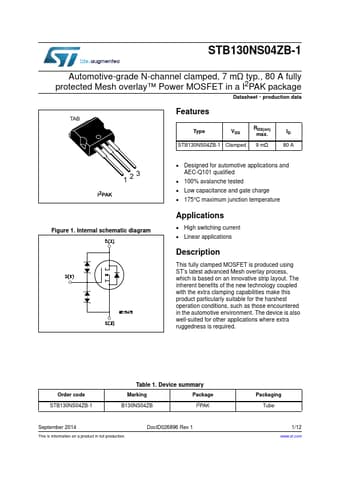

Preview of STB130NS04ZB-1 PDF

Datasheet Details

Part number:

STB130NS04ZB-1

Manufacturer:

STMicroelectronics ↗

File Size:

515.27 KB

Description:

N-channel power mosfet.
STB130NS04ZB-1 Automotive-grade N-channel clamped, 7 mΩ typ., 80 A fully protected Mesh overlay™ Power MOSFET in a I2PAK package Datasheet - producti.
