STB13NK60Z-1, STB13NK60Z, N-channel Power MOSFET

STB13NK60Z - STB13NK60Z-1 STP13NK60Z/FP - STW13NK60Z N-CHANNEL 600V - 0.48Ω - 13A - TO-220/FP - D²/I²PAK - TO-247 Zener-Protected SuperMESH™ MOSFET G.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

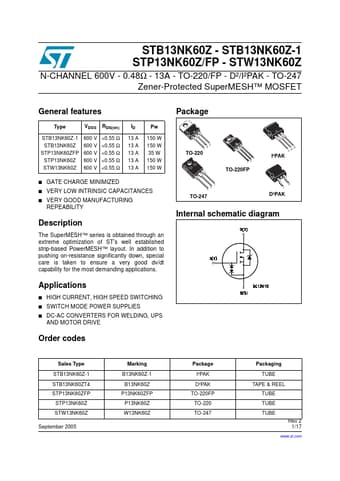

STB13NK60Z_STMicroelectronics.pdf

STB13NK60Z-1 Datasheet Preview — This datasheet PDF includes multiple part numbers: STB13NK60Z-1, STB13NK60Z. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STB13NK60Z-1, STB13NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

339.77 KB

Description:

N-channel Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: STB13NK60Z-1, STB13NK60Z.
Please refer to the document for exact specifications by model.

Features

* Type VDSS RDS(on) STB13NK60Z-1 STB13NK60Z STP13NK60ZFP STP13NK60Z STW13NK60Z 600 V 600 V 600 V 600 V 600 V

Applications

* Applications
* HIGH CURRENT, HIGH SPEED SWITCHING
* SWITCH MODE POWER SUPPLIES
* DC-AC CONVERTERS FOR WELDING, UPS AND MOTOR DRIVE Order codes Package 3 2 1 TO-220 3 2 1 TO-220FP 123 I²PAK 3 2 1 TO-247 3 1 D²PAK Internal schematic diagram Sales Type STB13NK60Z-1 STB13NK60ZT4 S
