STG3P2M10N60B Datasheet, Module, ST Microelectronics

STG3P2M10N60B Features

  • Module www.DataSheet4U.com Type VCES 600V VCE(sat)(Max) @ IC=7A, IC@80°C Ts=25°C < 2.5V 10A STG3P2M10N60B
  • N

PDF File Details

Part number:

STG3P2M10N60B

Manufacturer:

STMicroelectronics ↗

File Size:

350.46kb

Download:

📄 Datasheet

Description:

1-phase bridge rectifier + 3 phase inverter igbt - semitop2 module. Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBT

Datasheet Preview: STG3P2M10N60B 📥 Download PDF (350.46kb)

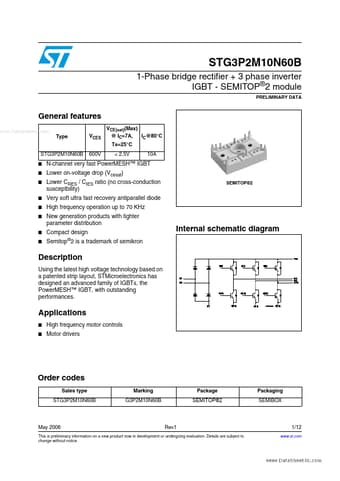

Page 2 of STG3P2M10N60B Page 3 of STG3P2M10N60B

STG3P2M10N60B Application

  • Applications
  • High frequency motor controls Motor drivers Order codes Sales type STG3P2M10N60B Marking G3P2M10N60B Package SEMI
