STGB3NB60SD Datasheet - ST Microelectronics

N-CHANNEL IGBT

STGB3NB60SD General Description

Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™ IGBTs, with outstanding perfomances. The suffix “S” identifies a family optimized to achieve minimum on-voltage drop for low frequency applications (.

STGB3NB60SD Datasheet (336.48 KB)

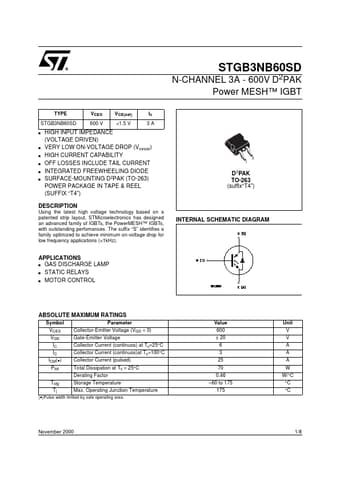

STGB3NB60SD Datasheet Preview — Preview of STGB3NB60SD PDF

Datasheet Details

Part number:

STGB3NB60SD

Manufacturer:

STMicroelectronics ↗

File Size:

336.48 KB

Description:

N-channel igbt.
STGB3NB60SD N-CHANNEL 3A - 600V D2PAK Power MESH™ IGBT TYPE STGB3NB60SD s VCES 600 V VCE(sat) <1.5 V Ic 3A s s s s s HIGH INPUT IMPEDANCE (VOLTAG.
