STGB30H60DF Datasheet, Igbt, STMicroelectronics

STGB30H60DF Features

  • Igbt
  • High speed switching
  • Tight parameters distribution
  • Safe paralleling
  • Low thermal resistance
  • Short circuit rated
  • Ultrafast soft

PDF File Details

Part number:

STGB30H60DF

Manufacturer:

STMicroelectronics ↗

File Size:

1.90MB

Download:

📄 Datasheet

Description:

30a high speed trench gate field-stop igbt. This device is an IGBT developed using an advanced proprietary trench gate and field stop structure. This IGBT series offers the opti

Datasheet Preview: STGB30H60DF 📥 Download PDF (1.90MB)

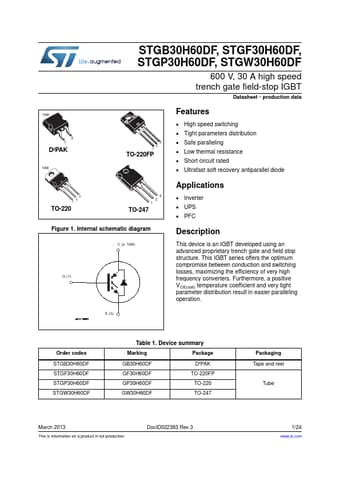

Page 2 of STGB30H60DF Page 3 of STGB30H60DF

STGB30H60DF Application

  • Applications
  • Inverter
  • UPS
  • PFC Description This device is an IGBT developed using an advanced proprietary trench gate a
