STGB30M65DF2 Datasheet, Igbt, STMicroelectronics

STGB30M65DF2 Features

  • Igbt
  • 6 µs of short-circuit withstand time
  • VCE(sat) = 1.55 V (typ.) @ IC = 30 A
  • Tight parameters distribution
  • Safer paralleling
  • Low thermal r

PDF File Details

Part number:

STGB30M65DF2

Manufacturer:

STMicroelectronics ↗

File Size:

876.14kb

Download:

📄 Datasheet

Description:

Trench gate field-stop igbt. This device is an IGBT developed using an advanced proprietary trench gate field-stop structure. The device is part of the M series I

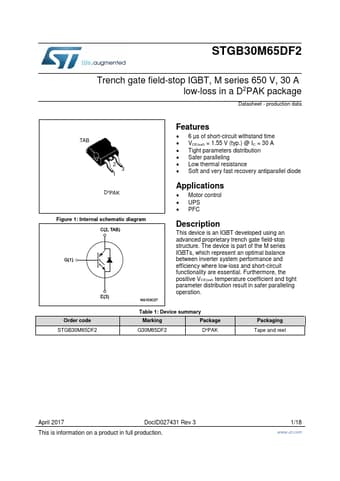

Datasheet Preview: STGB30M65DF2 📥 Download PDF (876.14kb)
Page 2 of STGB30M65DF2 Page 3 of STGB30M65DF2

STGB30M65DF2 Application

  • Applications
  • Motor control
  • UPS
  • PFC Description This device is an IGBT developed using an advanced proprietary trench g
