STGB30H60DFB Datasheet, Igbt, STMicroelectronics

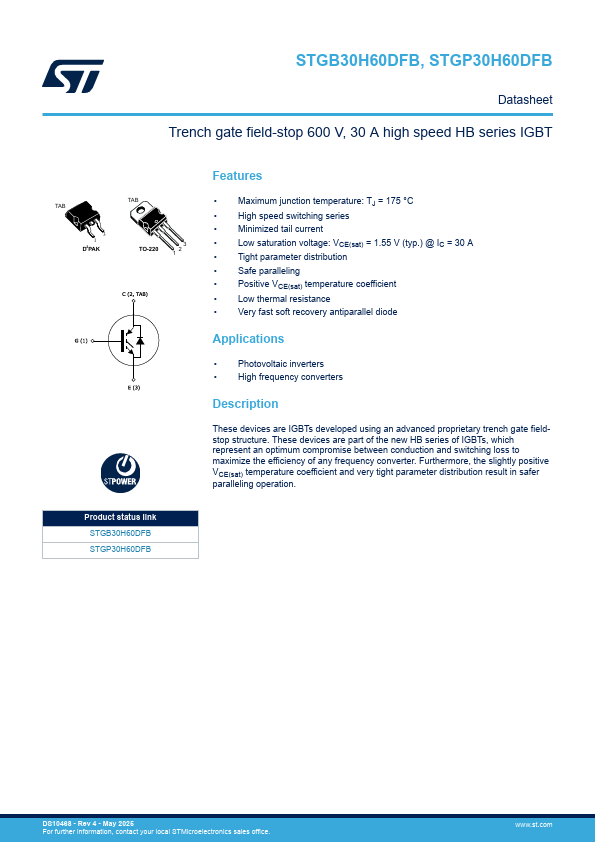

STGB30H60DFB Features

• Igbt
• Maximum junction temperature: TJ = 175 °C
• High speed switching series
• Minimized tail current
• Low saturation voltage: VCE(sat) = 1.55 V (typ.) @ I

PDF File Details

Part number:

STGB30H60DFB

Manufacturer:

STMicroelectronics ↗

File Size:

819.52kb

Download:

📄 Datasheet

Description:

Igbt. These devices are IGBTs developed using an advanced proprietary trench gate fieldstop structure. These devices are part of the new HB

STGB30H60DFB Application

• Applications
• Photovoltaic inverters
• High frequency converters Description These devices are IGBTs developed using an advanced pr
