STGB30NC60W

ultra fast IGBT

STMicroelectronics

STGB30NC60W Features

* High frequency operation Lower CRES / CIES ratio (no cross-conduction susceptibility) 2 1 3 1 2 3 Applications

* High frequency motor controls, inverters, ups HF, SMPS and PFC in both hard switch and resonant topologies TO-247 3 1 TO-220 D²PAK Description This IGBT utili

STGB30NC60W General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. Figure 1. Internal schematic diagram Table 1. Device summary Marking GB30NC60W GP30NC60W GW30NC60W Package D²PAK TO-220 TO-247 Packaging Tape and reel T.

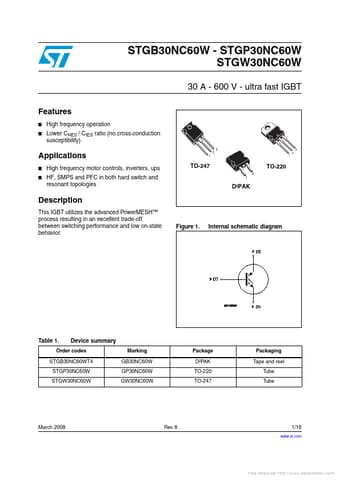

STGB30NC60W Datasheet (484.30 KB)

STGB30NC60W Datasheet Preview — Preview of STGB30NC60W PDF

Datasheet Details

Part number:

STGB30NC60W

Manufacturer:

STMicroelectronics ↗

File Size:

484.30 KB

Description:

Ultra fast igbt.
