STLC7550 Datasheet - ST Microelectronics

STLC7550 LOW POWER LOW VOLTAGE ANALOG FRONT END

The STLC7550 is a single chip Analog Front-end (AFE) designed to implement modems up to 56Kbps. It has been especially designed for host processing application in which the modulation software (V.34bis, 56Kbps) is performed by the main application processor : Pentium, Risc or DSP processors. The mai.
STLC7550 LOW POWER LOW VOLTAGE ANALOG FRONT END . . . . . . . . . . . . . . . . GENERAL PURPOSE SIGNAL PROCESSING ANALOG FRONT END (AFE) TARGETED FOR V.34bis MODEM AND 56Kbps MODEM APPLICATIONS 16-BIT OVERSAMPLING Σ∆ A/D AND D/A CONVERTERS 83dB SIGNAL TO NOISE RATIO FOR SAMPLING FREQUENCY UP TO 9.6kHz @ 3V 87dB DYNAMIC RANGE @ 3V FILTER BANDWIDTHS : 0.425 x THE SAMPLING FREQUENCY ON-CHIP REFERENCE VOLTAGE SINGLE POWER SUPPLY RANGE : 2.7 TO 5.5V LOW POWER CONSUMPTION LESS THAN 30mW OPERATING PO.

STLC7550 Datasheet (174.59 KB)

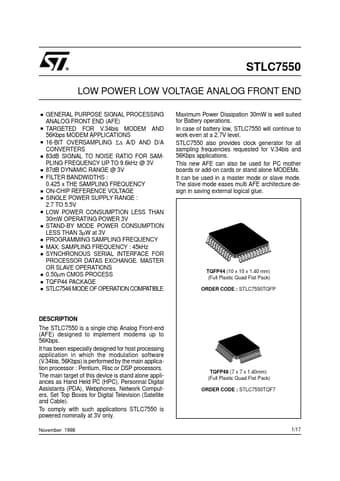

Preview of STLC7550 PDF
STLC7550 Datasheet Preview Page 2 STLC7550 Datasheet Preview Page 3

Datasheet Details

Part number:

STLC7550

Manufacturer:

STMicroelectronics ↗

File Size:

174.59 KB

Description:

Low power low voltage analog front end.
