STP10NC50FP, STP10NC50 N-CHANNEL Power MOSFET

ST Microelectronics

Description

( DataSheet : www.DataSheet4U.com ) ® STP10NC50 STP10NC50FP N - CHANNEL 500V - 0.48Ω - 10A - TO-220/TO-220FP PowerMESH™ MOSFET PRELIMINARY DATA TYP.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

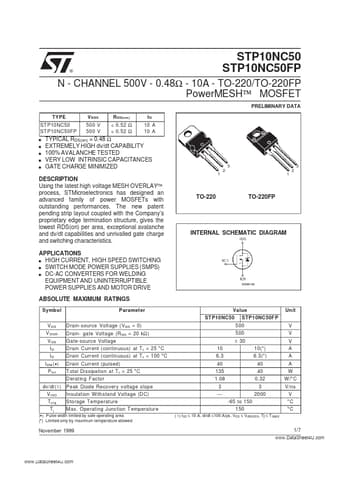

STP10NC50FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP10NC50FP, STP10NC50. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP10NC50FP, STP10NC50
Manufacturer: STMicroelectronics ↗
File Size: 104.41 KB
Datasheet: STP10NC50_STMicroelectronics.pdf
Description: N-CHANNEL Power MOSFET
Note: This datasheet PDF includes multiple part numbers: STP10NC50FP, STP10NC50.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITCH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID I DM (
* ) P tot dv/dt( 1 ) V ISO Ts tg Tj Parameter Drain-source Voltage
