Part number: STP13NK50Z
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 439.45KB
Download: 📄 Datasheet
Description: Power MOSFETs
Type
STF13NK50Z STP13NK50Z STW13NK50Z
VDSS
RDS(on) max
ID
Pw
500 V 500 V 500 V
<0.48 Ω 11 A <0.48 Ω 11 A <0.48 Ω 11 A
30 W 140 W 140 W
* Extremely high dv/dt.
* Switching application
Description
The SuperMESH™ series is obtained through an extreme optimization of ST’s well.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the m.

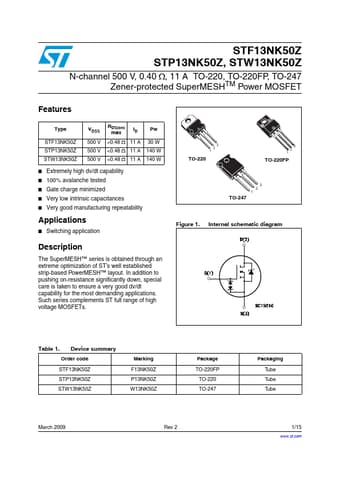

Image gallery
