Part number: STP13N65M2
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 517.51KB
Download: 📄 Datasheet
Description: N-channel Power MOSFET
TAB
TAB
TO-220
3 2 1
3 2 1
IPAK

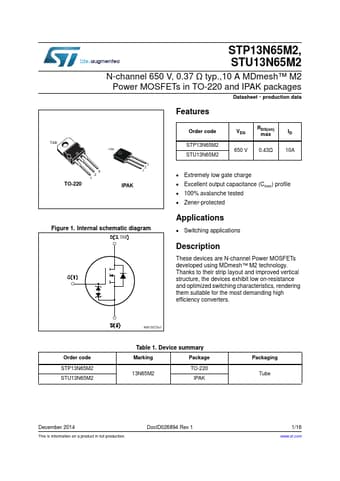

Figure 1. Internal schematic diagram
, TAB
Order code
STP13N65M2 STU13N65M2
VDS
RDS(on) max
ID
650 V 0.43Ω
10A
* Extremel.
* Switching applications
Description
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology.
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for .
