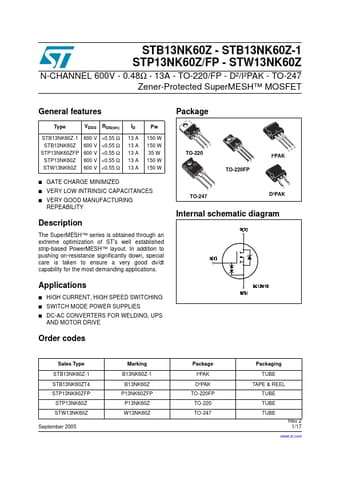

Part number: STP13NK60ZFP
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 339.77KB
Download: 📄 Datasheet
Description: N-channel Power MOSFET
Type
VDSS RDS(on)
STB13NK60Z-1 STB13NK60Z STP13NK60ZFP STP13NK60Z STW13NK60Z
600 V 600 V 600 V 600 V 600 V
<0.55 Ω <0.55 Ω <0.55 Ω <0.55 Ω <0.55 Ω
ID
13 A 13 A 13 A.
Applications
* HIGH CURRENT, HIGH SPEED SWITCHING
* SWITCH MODE POWER SUPPLIES
* DC-AC CONVERTERS FOR WELD.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the mo.
