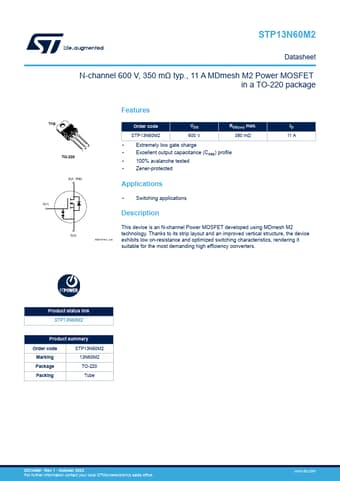

Part number: STP13N60M2
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 583.31KB
Download: 📄 Datasheet
Description: N-channel Power MOSFET
TAB
TO-220
1 23
D(2, TAB)
Order code
VDS
RDS(on) max.
ID
STP13N60M2
600 V
380 mΩ
11 A
* Extremely low gate charge
*
Excellent output capacitance (C.
* Switching applications
G(1)
Description
This device is an N-channel Power MOSFET developed using MDmesh M2
S(3).
This device is an N-channel Power MOSFET developed using MDmesh M2
S(3)
technology. Thanks to its strip layout and an improved vertical structure, the device
AM01476v1_tab exhibits low on-resistance and optimized switching characteristics, render.
