Part number: STP13N95K3
Manufacturer: STMicroelectronics (https://www.st.com/)
File Size: 563.44KB
Download: 📄 Datasheet
Description: Power MOSFETs

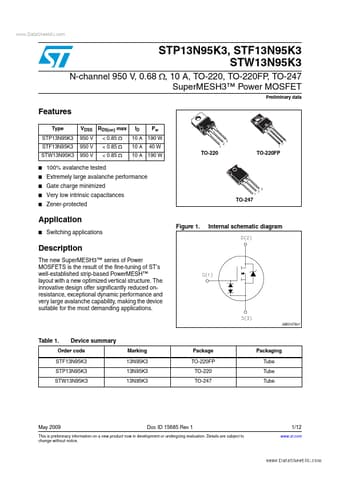

Type STP13N95K3 STF13N95K3 STW13N95K3
*
*
*
*
*
VDSS 950 V 950 V 950 V
RDS(on) max < 0.85 Ω < 0.85 Ω < 0.85 Ω
ID 10 A
Pw
3 1 2
1 3 2
10 A 190 W 4.
Description
The new SuperMESH3™ series of Power MOSFETS is the result of the fine-tuning of ST's well-established strip.
The new SuperMESH3™ series of Power MOSFETS is the result of the fine-tuning of ST's well-established strip-based PowerMESH™ layout with a new optimized vertical structure. The innovative design offer significantly reduced onresistance, exceptional d.
