STP130N8F7 Datasheet, Mosfet, STMicroelectronics

STP130N8F7 Features

• Mosfet Order code STP130N8F7 VDS 80 V RDS(on) max. 5.8 mΩ ID 80 A PTOT 205 W
• Among the lowest RDS(on) on the market
• Excellent FoM (figure of merit)
• Low Crss

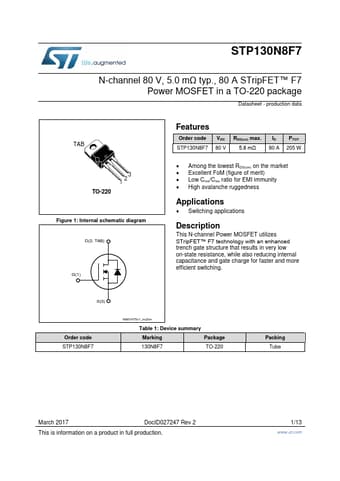

PDF File Details

Part number:

STP130N8F7

Manufacturer:

STMicroelectronics ↗

File Size:

548.77kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate structure that results in very low on-state

STP130N8F7 Application

• Applications
• Switching applications Description This N-channel Power MOSFET utilizes STripFET™ F7 technology with an enhanced trench gate
