STP6NK60Z

N-Channel MOSFET

STP6NK60Z Features

* Type STB6NK60Z STB6NK60Z-1 STP6NK60ZFP STP6NK60Z VDSS 600 V 600 V 600 V 600 V RDS(on) ID PW < 1.2 Ω 6 A 110 W < 1.2 Ω 6 A 110 W < 1.2 Ω 6 A 30 W < 1.2 Ω 6 A 110 W

* Extremely high dv/dt capability

* 100% avalanche tested

* Gate charge minimized Application

* Switching appli

STP6NK60Z General Description

The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. 3 2 1 TO-220 3 1 D²PA.

STP6NK60Z Datasheet (440.79 KB)

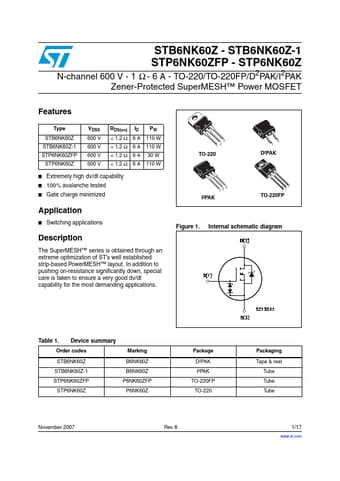

Preview of STP6NK60Z PDF

Datasheet Details

Part number:

STP6NK60Z

Manufacturer:

STMicroelectronics ↗

File Size:

440.79 KB

Description:

N-channel mosfet.
STB6NK60Z - STB6NK60Z-1 STP6NK60ZFP - STP6NK60Z N-channel 600 V - 1 Ω - 6 A - TO-220/TO-220FP/D2PAK/I2PAK Zener-Protected SuperMESH™ Power MOSFET Fea.
