STP6NK70Z Datasheet, Mosfet, ST Microelectronics

STP6NK70Z Features

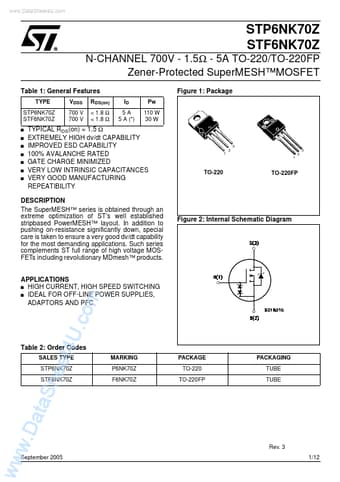

• Mosfet TYPE STP6NK70Z STF6NK70Z s s s s s s s Figure 1: Package ID 5A 5 A (
• ) Pw 110 W 30 W VDSS 700 V 700 V RDS(on) < 1.8 Ω < 1.8 Ω TYPICAL RDS(on) = 1.5 Ω EXTREMELY HIGH dv/dt CA

PDF File Details

Part number:

STP6NK70Z

Manufacturer:

STMicroelectronics ↗

File Size:

361.46kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The SuperMESH™ series is obtained through an extreme optimization of ST’s well established stripbased PowerMESH™ layout. In addition

STP6NK70Z Application

• Applications Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Figure 2: Internal Schematic
