STP6NK90Z - N-CHANNEL MOSFET

STP6NK90Z Description

STP6NK90Z - STP6NK90ZFP STB6NK90Z - STW7NK90Z N-channel 900V - 1.56Ω - 5.8A - TO-220/TO-220FP/D2PAK/TO-247 Zener-protected SuperMESH™ Power MOSFET Fe.
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

STP6NK90Z Features

* Type STP6NK90Z STP6NK90ZFP STB6NK90Z STW7NK90Z VDSS 900 V 900 V 900 V 900 V RDS(on)

STP6NK90Z Applications

* Such series complements ST full range of high voltage MOSFETs. Application
* Switching application TO-220 3 2 1 TO-220FP 3 1 D2PAK TO-247 Internal schematic diagram Order codes Part number STP6NK90Z STP6NK90ZFP STB6NK90ZT4 STW7NK90Z April 2007 Marking P6NK90Z P6NK90ZFP B6NK90Z W7NK90Z

📥 Download Datasheet

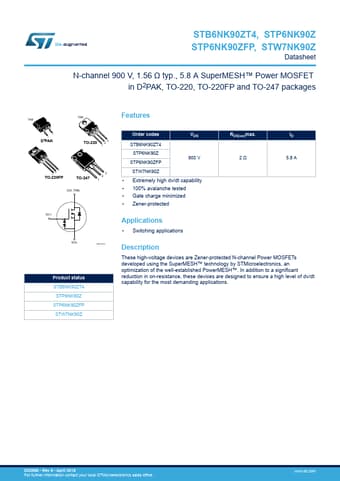

Preview of STP6NK90Z PDF
